Tool Kits & Fast Moving Spare Part Kit

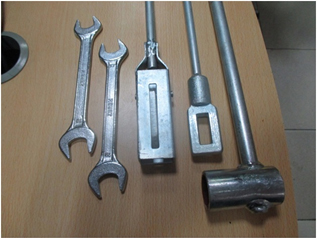

Special Tool Kit for India Mark II Hand Pumps
S.No. |
Item |
Qty. |
| 1 | Heavy duty clamp | 1 |
| 2 | Connecting rod vice | 1 |
| 3 | Pipe lifting spanners | 3 |
| 4 | Water tank pipe lifter | 1 |
| 5 | Crank spanners (17x19) | 2 |
| 6 | Connecting rod lifter | 1 |
| 7 | Handle axle punch | 1 |
| 8 | Chain coupling supporting tool | 1 |
| 9 | Coupling spanner | 1 |
| 10 | Bearing pressing tool | 1 |
| 11 | Mild steel box | 1 |

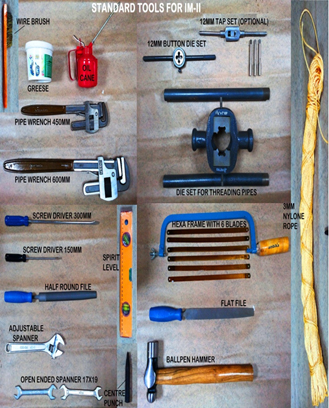

Standard Tool Kit for India Mark II Hand Pump
S.No. |
Item |
Qty. |
| 1 | Button Die set for 12mm threads | 1 |
| 2 | Die set for riser pipe | 1 |
| 3 | Pipe wrench, 450mm | 3 |
| 4 | Pipe wrench, 600mm | 1 |
| 5 | Double ended open jaw spanner M17xM19 | 2 |
| 6 | Adjustable spanner 250mm | 1 |
| 7 | Screw Driver, 300mm | 1 |
| 8 | Screw Driver 150m long | 1 |
| 9 | Hacksaw with blade, 300m & six(6)spare blades | 1 |
| 10 | File, flat for use on metal,250mm with wooden handle | 1 |
| 11 | Half round file,250mm with wooden handle | 1 |
| 12 | Ball pein hammer with handle (800 gms) | 1 |
| 13 | Oil Can, pressure type ½ pint with oil | 1 |
| 14 | Wire Brush with wooden handle | 1 |
| 15 | Centre punch | 1 |
| 16 | Nylon rope 3mm thick, 75mm | 1 |
| 17 | Multi purpose Grease, 1/2 kg. | 1 |
| 18 | Spirit Level | 1 |
| 19 | Mild Steel Box | 1 |

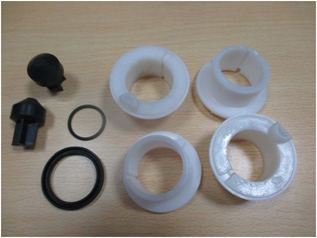

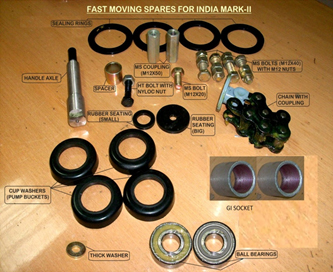

Fast Moving Spare Part Kit for India mark II Handpump
S.No. |
Item |
Qty. |
Image |
| 1 | Hexagonal Bolts, M12 x 1.75 x 40 | 4 | |
| 2 | Hexagonal Nuts, M12 x 1.75 | 8 | |
| 3 | Hexagonal Bolts, M10x1.50 x 40 | 3 | |
| 4 | Nyloc Nut , M10 | 1 | |
| 5 | Handle axle (SS) | 1 | |
| 6 | Washer for axle | 1 | |
| 7 | Bearing , 6204Z | 1 | |
| 8 | Spacer | 1 | |
| 9 | Chain with coupling | 1 | |
| 10 | Bolt for Front cover, M12x1.75x20 | 1 | |
| 11 | Pump Buckets | 1 | |
| 12 | Sealing Ring | 1 | |
| 13 | Rubber seating , big | 1 | |
| 14 | Rubber Seating , small | 1 | |
| 15 | M.S.Hexagonal coupling, M12x1.75x50 | 1 | |
| 16 | Pipe sockets for 32mm NB pipe | 1 |
